Productinformatie "Petzl Am’D Triact-Lock Carabiner"
Lichte asymmetrische karabiner
De lichte en asymmetrische OK karabiner is gemaakt van aluminium. De karabiner is met
zijn D-vorm bijzonder goed aangepast aan de verbinding van diverse apparaten, zoals een afdaalapparaat of leeflijn voor werkpositionering. Dankzij het soepele ontwerp van de binnenkant en het Keylock systeem verlopen de manipulaties gemakkelijker. De Am'D karabiner is verkrijgbaar in drie vergrendelsystemen: TRIACT-LOCK automatisch systeem, BALL-LOCK automatisch systeem en SCREW-LOCK manueel systeem.
- D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
- Aluminum carabiner whose light weight reduces the weight of equipment the worker at height needs to carry
- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
- Easier handling:

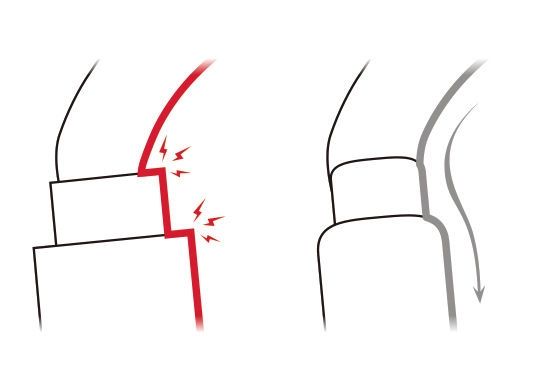

- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
- H cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion

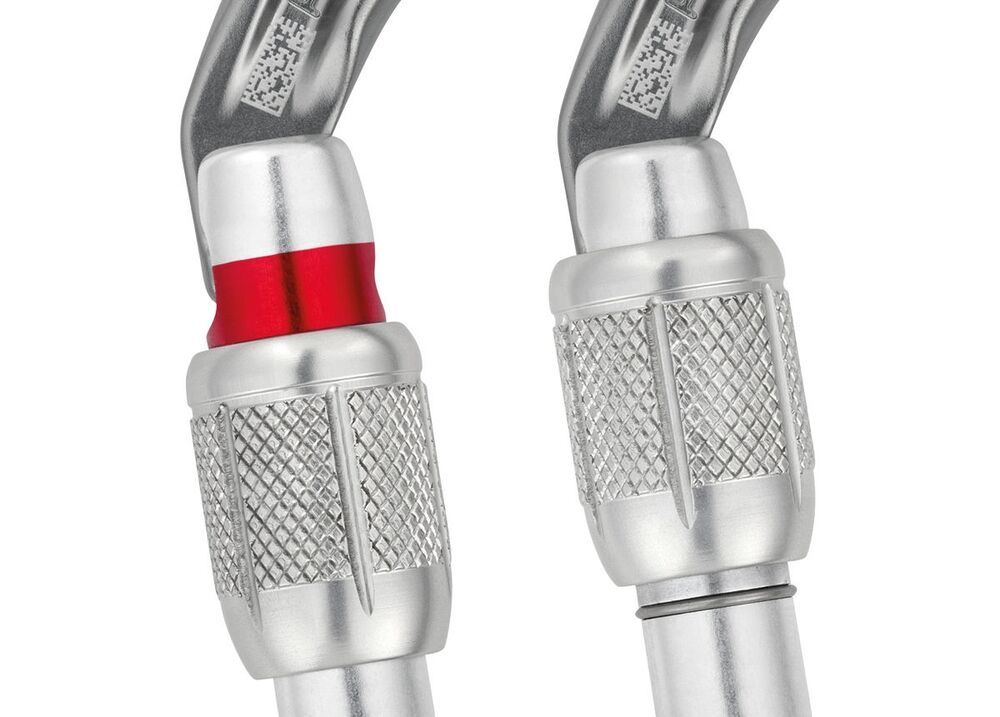

- Available in three different locking systems:
- TRIACT-LOCK: automatic locking with triple-action gate opening

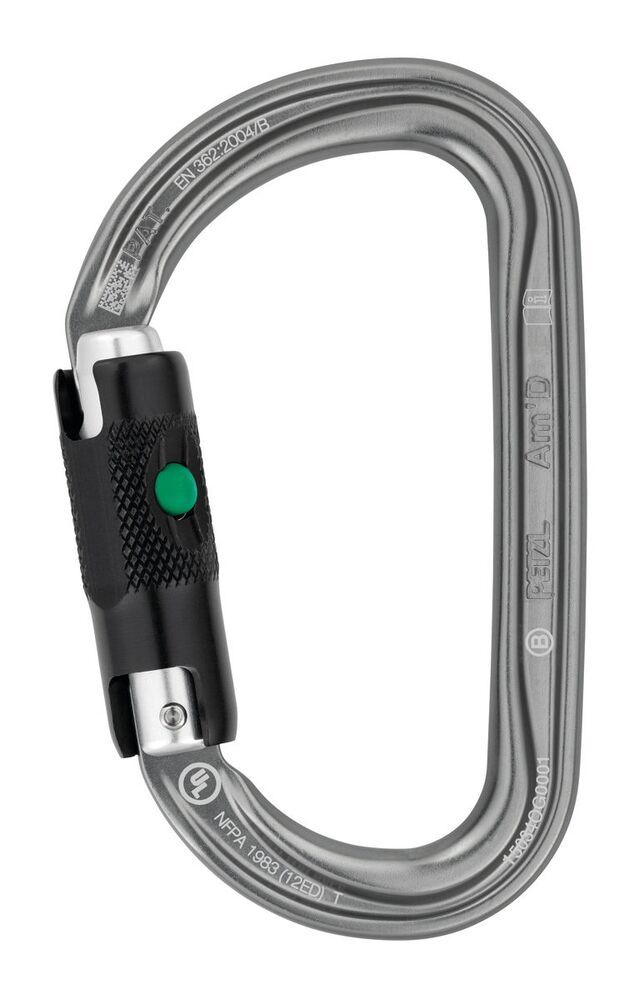

- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

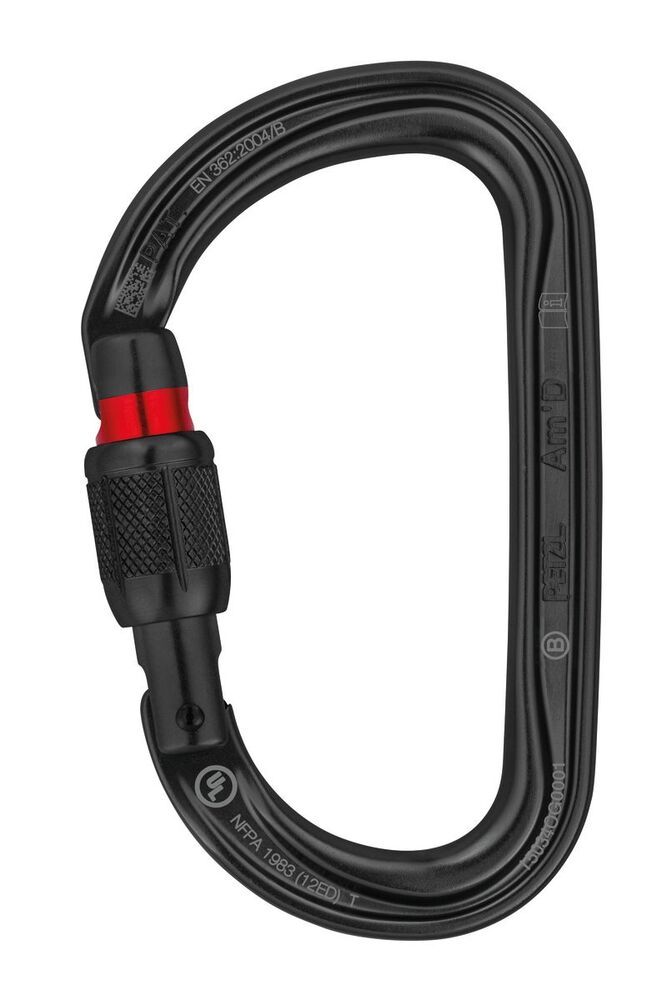

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
- Also available in black (TRIACT-LOCK and SCREW-LOCK)
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
SKUs
SKUs M34A TL M34A BL M34A SL M34A TLN M34A SLN
Weight 75 g 75 g 70 g 75 g 70 g
Locking system TRIACT-LOCK BALL-LOCK SCREW-LOCK TRIACT-LOCK SCREW-LOCK
Color(s) gray gray gray black black
Major axis strength 27 kN 27 kN 27 kN 27 kN 27 kN
Minor axis strength 8 kN 8 kN 8 kN 8 kN 8 kN
Open gate strength 7 kN 7 kN 7 kN 7 kN 7 kN
Gate opening 24 mm 25 mm 25 mm 24 mm 25 mm
Guarantee 3 years 3 years 3 years 3 years 3 years
Packing 1 1 1 1 1
